Single Tower Dual Fan Design
TOUGHAIR 510 is a single tower duel fan designed air cooler with 4 heat pipes running through the fins, the U-shape heat pipes increase heat circulation creating better heat dissipation in your system and supports up to 180W.

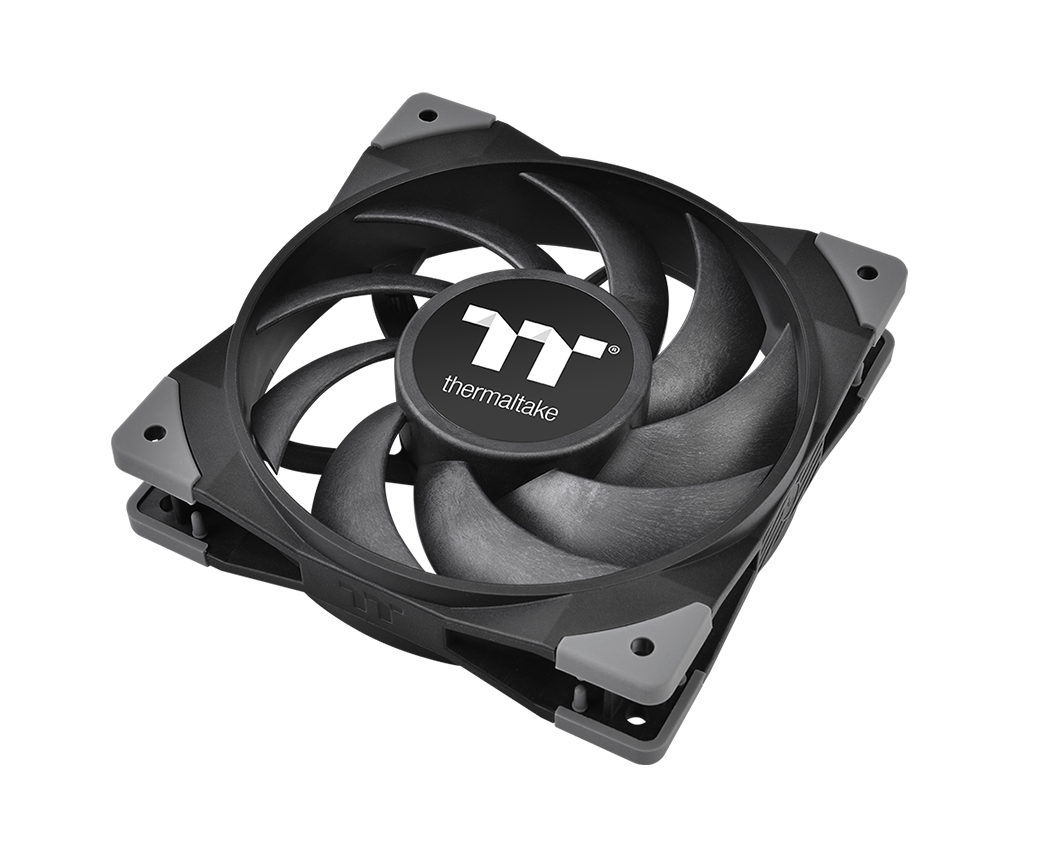

Enhanced 120 mm high static pressure Fan
TOUGHAIR series utilizes high static pressure fans, which leverages the TOUGHFAN 12
design and boosts the fan speed to 2000 RPM, providing a new level of cooling performance to our CPU cooler.

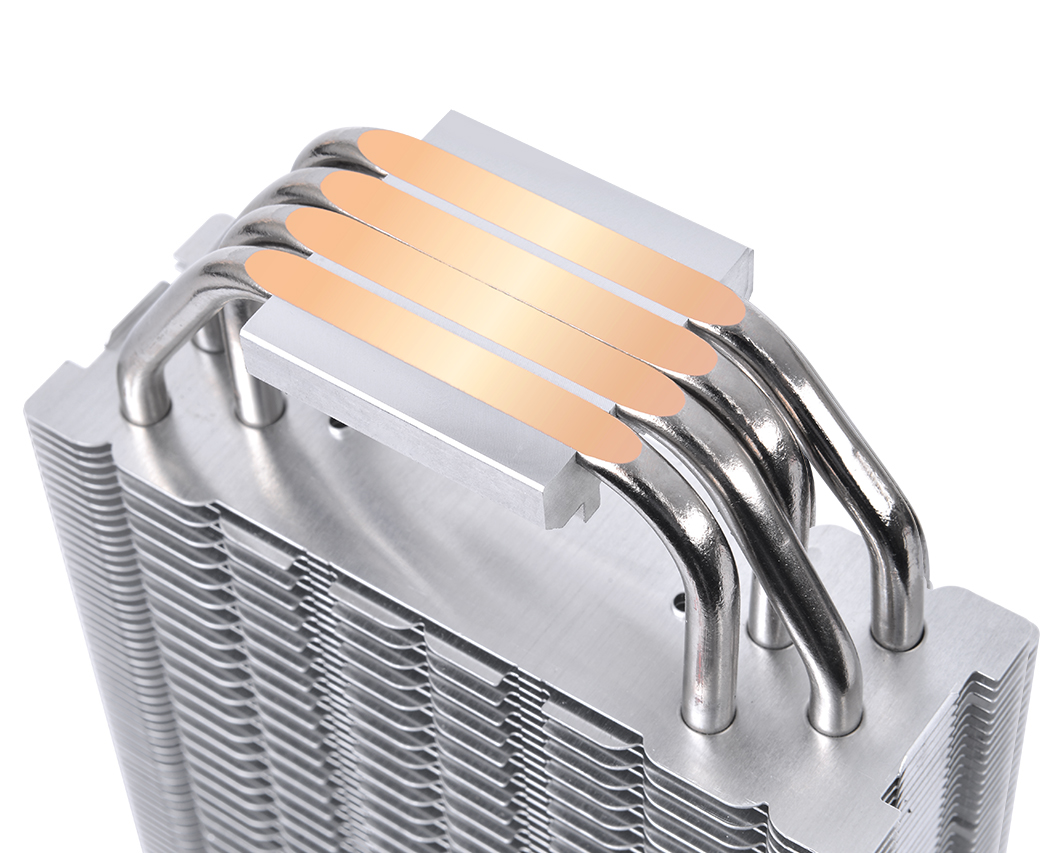

High-Performance U-shape copper heat pipes
4 x Ø6 mm heat pipes directly touch the CPU and thermal paste. The U-shape design creates perfect circulation for better CPU cooling performance.

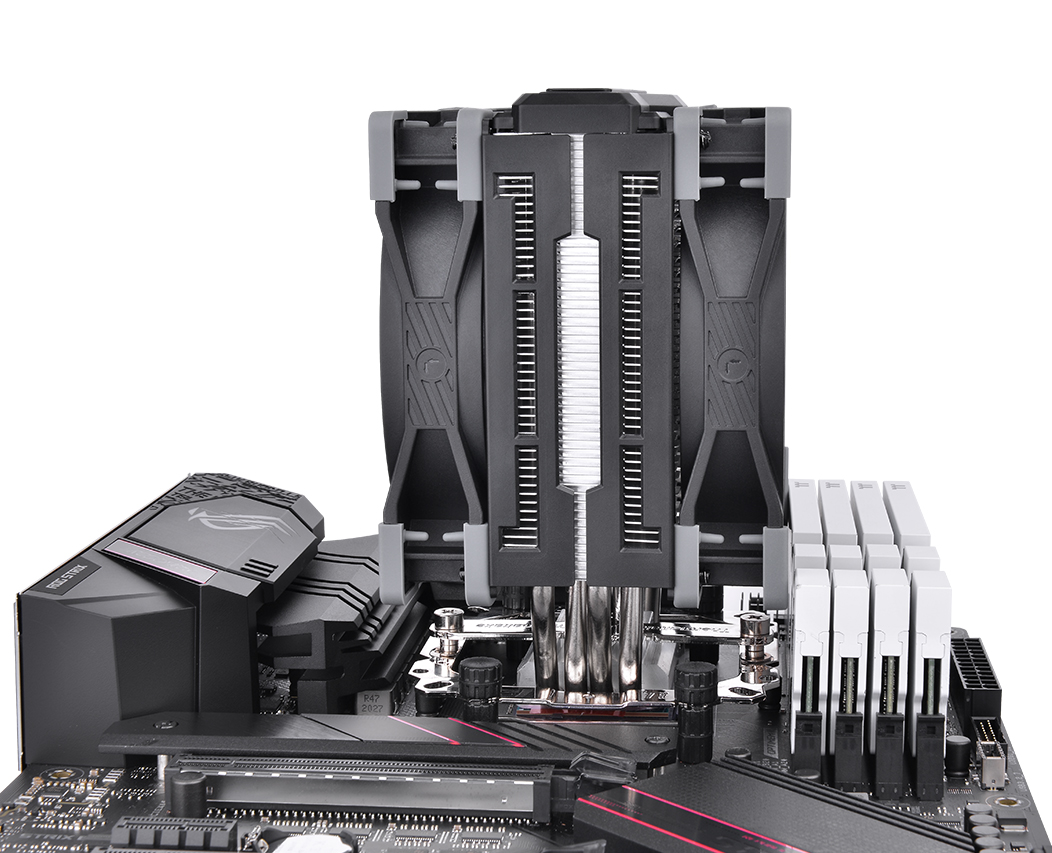

Universal Compatibility
TOUGHAIR Series are designed to fit Intel and AMD sockets including the following models:
Intel LGA 1700/1200/1156/1155/1151/1150
AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
| P/N | CL-P075-AL12BL-A |
|---|---|
| COMPATIBILITY | Intel LGA 1700/1200/1156/1155/1151/1150 AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 |
| Dimensions | 123.6 x 98.8 x 159.5 mm ( L x W x H) |
| Heatsink Material | Aluminum Fins Copper Heatpipes |
| Heatpipe | Φ6mm x 4 pcs |
| Fan Dimension | 120 x 120 x 25 mm ( L x W x H) |
| Fan quantity | 2 pcs |
| Fan Speed | PWM 500 ~ 2000 RPM |
| Rated Voltage | 12V |
| Start Voltage | 6.0 V |
| Rated Current | 0.48 A |
| Power Input | 5.76 W (one fan ) |
| Air Flow | 58.35 CFM (one fan ) |
| Air Pressure | 2.41 mm-H2O (one fan) |
| Acoustical Noise | 23.6 dBA |
| Life time/Fan Life time | 40,000 hours |
| pin connect | 2510 - 4Pin |
| Cooling Power | 180 W |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
TOUGHAIR 510 CPU Cooler
- Manual
- 2021-01-28
